An electric generator is a device that converts mechanical energy into electrical energy. It plays a crucial role in producing electricity used in homes, industries, and power stations.
The working of an electric generator is based on the principle of electromagnetic induction, discovered by Michael Faraday. When a conductor moves in a magnetic field, an electromotive force (emf) is generated, which produces electric current.
Principle of Electric Generator
An electric generator works on the principle of electromagnetic induction.
1. Electromagnetic Induction: It is the phenomenon in which an electric current is induced in a conductor when there is a change in magnetic flux linked with it.
2. Magnetic Flux: Defined as the total number of magnetic field lines passing through a given area.
- When the coil rotates, the magnetic flux changes continuously
- This change in flux produces induced emf
When a coil rotates in a magnetic field, electric current is produced.
Faraday’s Laws of Electromagnetic Induction
- Whenever there is a change in magnetic flux, an emf is induced in the circuit
- The magnitude of induced emf is directly proportional to the rate of change of magnetic flux
Fleming’s Right-Hand Rule
The direction of induced current can be determined using Fleming’s Right-Hand Rule:
- Thumb → Direction of motion of conductor
- Forefinger → Direction of magnetic field
- Middle fingr → Direction of induced current
Construction of Electric Generator
An electric generator consists of the following main parts:
1. Armature (Coil)
- A rectangular coil of insulated copper wire
- Rotates in the magnetic field
2. Magnet
- Provides a strong magnetic field
- Can be a permanent magnet or electromagnet
3. Slip Rings
- Two rings connected to the ends of the coil
- Rotate along with the coil
4. Carbon Brushes
- Stationary conductors that collect current
- Maintain contact with slip rings
5. Shaft (Axle)
- Helps rotate the coil using mechanical energy
Working of Electric Generator
- The coil is rotated inside a magnetic field using mechanical energy
- Due to rotation, the magnetic flux linked with the coil changes continuously
- This change induces an emf (potential difference) in the coil
- The induced emf causes current to flow
- The current is collected through slip rings and carbon brushes
- In most generators, the current changes direction periodically, producing alternating current
Advantages
- Efficient conversion of mechanical energy to electrical energy
- Essential for large-scale electricity generation
Limitations
- Requires continuous mechanical energy input
- Energy losses due to heat and friction
Types of Electric Generators
1. AC Generator (Alternator)
- Produces alternating current (AC)
- Uses slip rings
- Current changes direction continuously
- Used in power stations

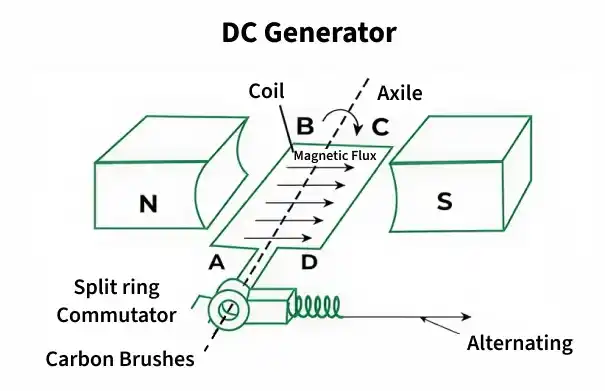

2. DC Generator
- Produces direct current (DC)
- Uses a split-ring commutator
- Current flows in one direction
Applications of Electric Generator
- Generation of electricity in power plants
- Used in hydroelectric, thermal, and wind power stations
- Backup power supply (homes, hospitals)
- Industrial machines and equipment
